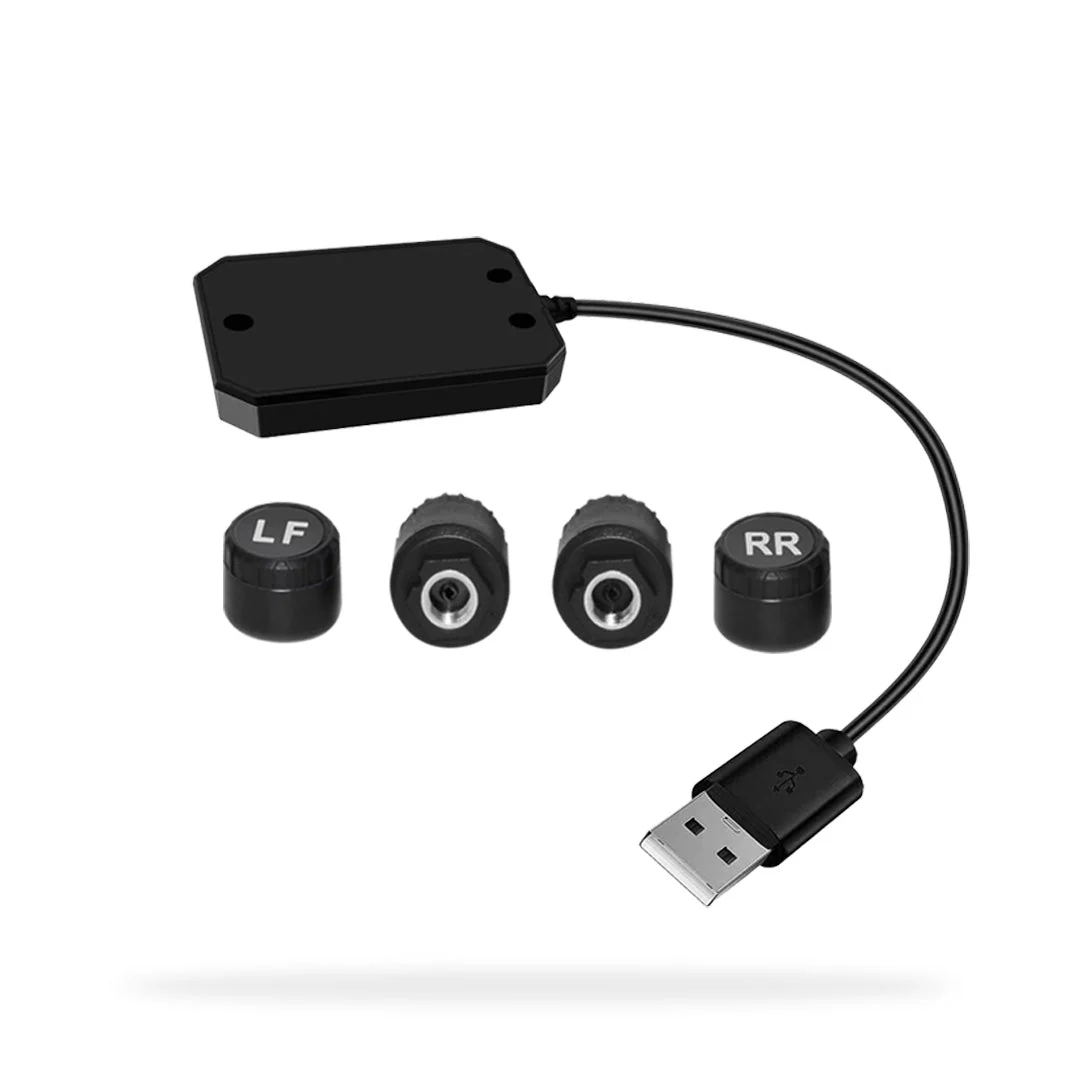

Universal Tire Pressure Monitoring Sensors (TPMS)

Equip your vehicle with this advanced Tire Pressure Monitoring Sensors (TPMS). Designed to keep you informed in real time, these sensors continuously monitors the pressure of all four or eight tires, helping prevent unexpected blowouts, improve fuel efficiency and extend tire life.

Available Variations

• 4-Wheel Coverage: Ideal for cars, SUVs and light trucks.
• 8-Wheel Coverage: Designed for trucks, RVs and trailers.

Features

• Enhanced Safety: Protect yourself and your passengers with real-time alerts that prevent tire blowouts and unsafe driving conditions.

• Extended Tire Lifespan: Maintain optimal tire pressure to reduce wear and tear, helping your tires last longer and perform better.

• Improved Fuel Efficiency: Keep your tires properly inflated to save fuel and reduce unnecessary trips to the pump.

• Real-Time Pressure and Temperature Monitoring: Stay informed with instant readings for all four tires, giving you complete control and peace of mind.

• Easy Installation: Install quickly and effortlessly with a straightforward, plug-and-play design.

Specification

• Receiver

  • Transmission Frequency: 433.92MHz

  • Power Supply: USB powered, Solar powered

  • Operating Voltage: DC 5V

  • Pressure Unit: bar / psi

  • Operating Temperature: -20 to 85℃

  • Storage Temperature: -40 to 105℃
• Internal Sensor

  • Transmission Frequency: 433.92MHz

  • Pressure Range: 0 – 8.0 bar / 0 – 116 PSI

  • Low Pressure Alarm Value: 1.8 bar

  • High Pressure Alarm Value: 3.2 bar

  • Adjustable Range: 1.0-7.9 / 2-116PSI

  • Accuracy of Measurement: ±0.1 bar / ±1.bar

  • Operating Voltage: DC+2.0 – 3.6V

  • Operating Temperature: -20 to 85℃

  • Storage Temperature: -40 to 125℃

  • Waterproof: IP67

  • Battery: Built-in CR2050 button battery

  • Battery Life: 2 to 3 Years
• External Sensor

  • Transmission Frequency: 433.92MHz

  • Pressure Range: 0 – 8.0 bar / 0 – 116 PSI

  • Low Pressure Alarm Value: 1.8 bar

  • High Pressure Alarm Value: 3.2 bar

  • Accuracy of Measurement: ±0.1 bar / ±1bar

  • Operating Voltage: DC+2.0 – 3.6V

  • Operating Temperature: -20 to 85℃

  • Storage Temperature: -40 to 125℃

  • Waterproof: IP67

  • Battery: Built-in CR1632 button battery

  • Battery Life: 1.5 to 2 Years
• Functions: Alarm notifications for abnormal tire pressure and temperature.
  • Triggers when tire pressure exceeds 3.2 bar (default)
  • Triggers when tire pressure drops below 1.8 bar (default)
  • Triggers when tire temperature exceeds 68℃ (default)
  • Default thresholds can be adjusted as needed

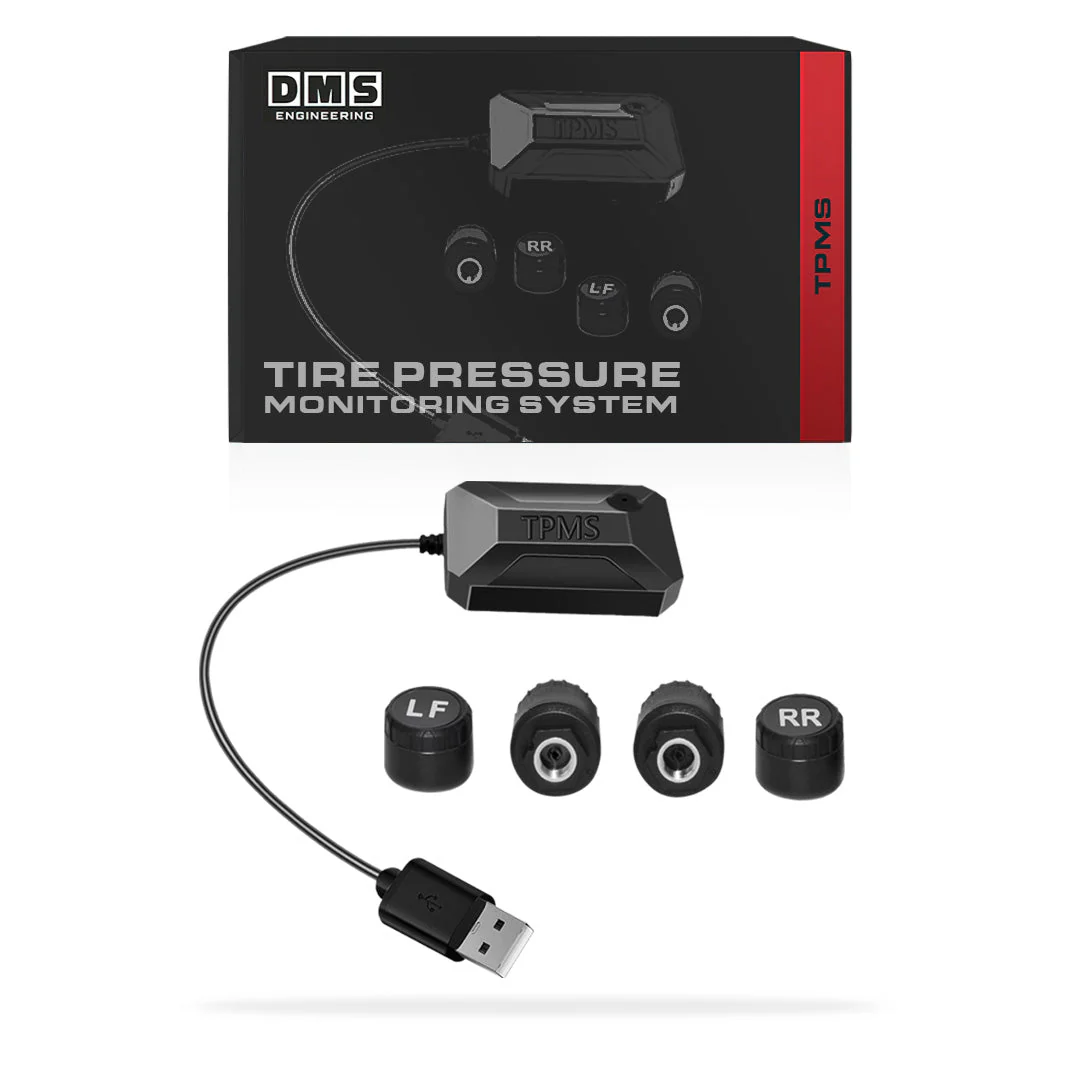

Package Contents

• 1 x Receiver
• 4 x Sensors
• 4 x Anti-Theft Nuts
• 1 x Non-Slip Mat
• 1 x USB Cable
• 1 x Wrench

Perfect for vehicle owners looking for a reliable and hassle-free tire monitoring solution. Enjoy safer drives and longer lasting tires with real-time updates.
